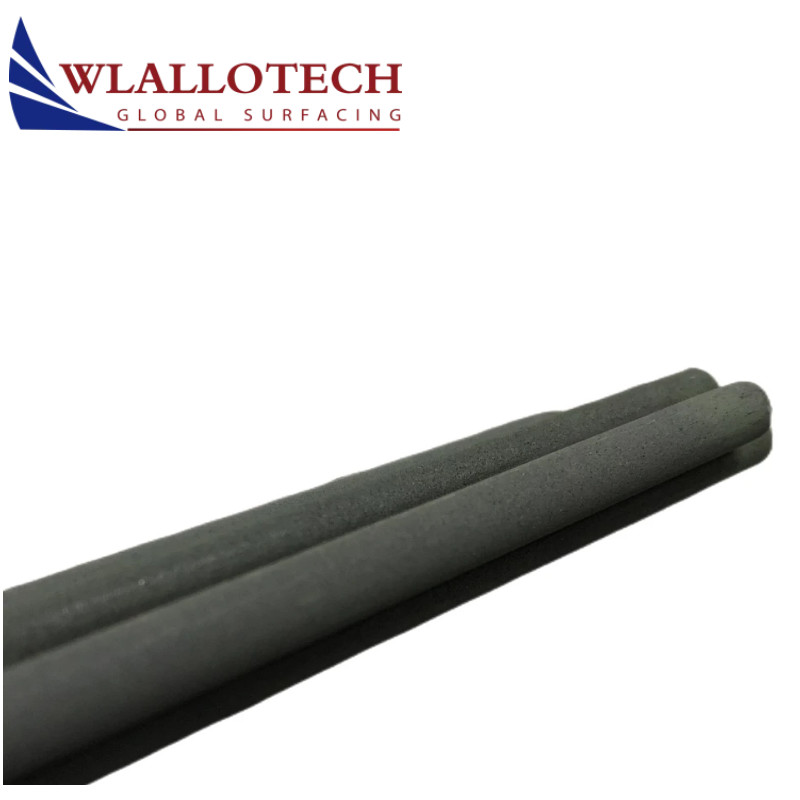

Cr2O3 Ceramic Bars Thermal Spray Pump Components Rotating Equipment Numerous
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Cr2O3 ceramic rod |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 10 tubes per wooden box |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cr2O3 Ceramic Rod | Deposit Efficiency | 51%~55% |
|---|---|---|---|
| Total Porosity | <8% | Bulk Density | 4.5g/cc |
| Hardness | HV1100 | Melt Temperature | 2800°C |
| Dimensions | φ6.3×605mm | Raw Material | Cr2O3,Al2O3,SiO2,Fe2O3,MgO |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| Color | Black Gray | Weight | 53g |
| High Light | Cr2O3 Ceramic Bars,HV1100 Ceramic Bars,al2o3 rod |
||
Product Description
Cr2O3 Ceramic Rod Thermal Spray Pump Components Rotating Equipment Numerous
Product Description
Chromium oxide ceramics is a very wear-resistant precision ceramic material with excellent wear resistance, excellent resistance to mechanical friction, high chemical resistance and other characteristics are widely used in the pump assembly, rotating equipment, and many other components.
Surface Preparation
Surface should be clean, white, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.
Chemical Composition(%)
| Grade (%) | AI2O3 | SiO2 |
Cr2O3 |
Fe2O3 | MgO |
|
Cr2O3 ceramic rod |
3.06 | 5.57 | 91.01 | 0.24 | 0.12 |
Typical Physical Properties
| Deposit Efficiency | Total porosity | Bulk Density | Coating Hardness | Melt Temperature |
|
51%~55% |
<8% | 4.5g/cc | HV1100 |
2800 °C |
Packing Details
| Diameter |
Dimension Tolerance |
Packing | Wire Weight |
| 3/16"(4.763mm) | 0/±0.0012"(±0.03mm) | Tube | 80 |
| 1/4" (6.35mm ) | 0/±0.0012"(±0.03mm) | Tube | 50 |
| 10 tubes per wooden box | |||
Applications
· Pump components
· Rotating equipment
· Numerous
Type We Could Offer
ceramic rod
|
WL TYPE |
Application |
|
Al2O3 ceramic rod |
sealing parts, valve seats |
| Cr2O3 ceramic rod |
pump components |
|
ZrO2 ceramic rod |
thermal insulation ring |
|
Al2O3 TiO2 |
mechanical seal ring |
