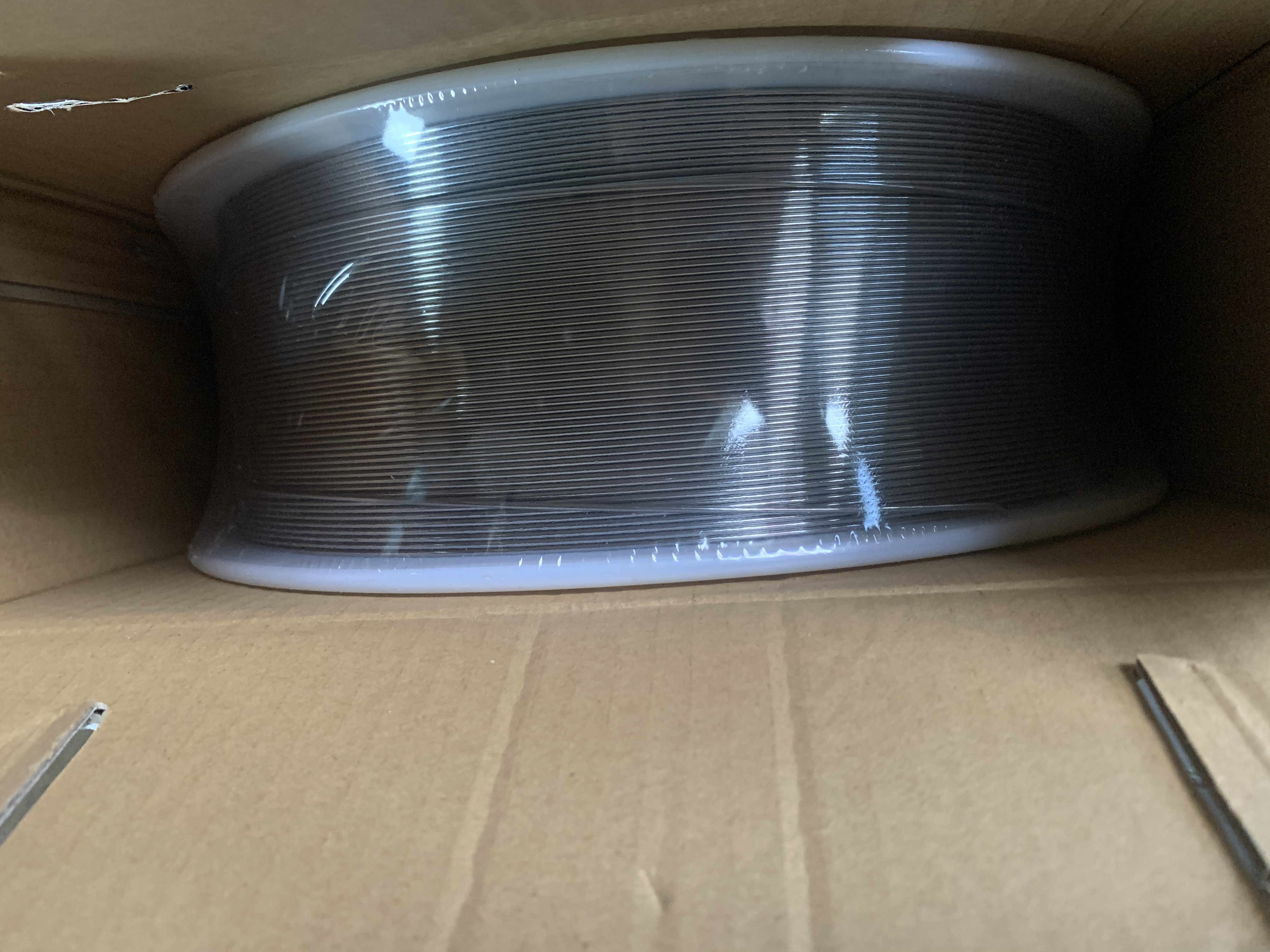

Tafa70T Monel 400 Wire Nickel Wires Metal Wire Coil Form Under Coat
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Monel 400 |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hardness | HRB 84 | Bond Strength | 4310 Psi |
|---|---|---|---|
| Deposit Rate | 10 Lbs /hr/100A | Deposit Efficiency | 70% |
| Machine Ability | Good | Density | 8.83 G/cm3 |
| Melting Point | 1350°C | Certificate | ISO 9001 |
| Surface | Bright | Spool Type | No Recycled Material |
| Spray Wire State | Semi-hard State | Color | Metal Color |
| Test Report | Mill-certificate | Dimensions | 1.6 Mm, 2.0 Mm, 3.17 Mm |
| High Light | Tafa70T monel 400 wire,monel 400 wire 1.6mm,2.0mm nickel wires |
||
Product Description
Monel 400 Tafa70T Nickel Alloy Wire Thermal Spray Wire Metal Wire Coil Form Under Coat Thermal Spray Wire
Product Description
Monel 400 shows high strength and excellent corrosion resistance in a range of acidic and alkaline environments and especially suitable for reducing conditions. It also has good ductility and thermal conductivity.
Equivalent to: Tafa70T, Oerlikon Metco Monel, PMET877.
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning. Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(wt%)
| Ni | Fe | Cu | Fe | C | Mn | Si | S |
| Min63 | Max 2.5 | 28-34 | ≤0.4 |
Max 0.3 |
Max 2 | Max 0.5 | Max 0.024 |
Physical Properties
| Grade | Density | Melting point °C |
| Monel400 | 8.83g/cm3 | 1350°C |
Typical Seposit Characteristics
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| HRB 84 | 4310 psi | 10 lbs/hr/100A | 70 % | Good |
Packing Details
| Diameter | Dimension Tolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 20-400kgs/coil |
Other sizes can be produced by customers’ requirement.
Applications
· Ceramic Under Coat
· Oxidation Resistance
· High Temperature
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
