NiAl8020 Thermal Wire Spray Coating Tafa 79B Metco 405 PMET 884 For Arc Spray Boning Layer 2.0mm 3.17mm
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-NiAl80/20 |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 5kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 2.0/3.17mm | Typical Hardness | HRB 60-75 |
|---|---|---|---|
| Bond Strength | 9100 Psi | Deposit Rate | 10 Lbs /hr/100A |
| Deposit Efficiency | 70% | Wire Coverage | 0.9 Oz/ft2 / M |
| Surface Texture | *Variable | Machine Ability | Good |
| Certificate | ISO 9001 | Surface | Bright |
| Spool Type | No Recycled Material | Spray Wire State | Semi-hard State |
| High Light | NiAl8020 Thermal wire spray coating,wire spray coating Tafa 79B,3.17mm wire spray |
||
Product Description
NiAl8020 Thermal Spray Wire Tafa 79B Metco 405 PMET 884 For Arc Spray Boning Layer 2.0mm 3.17mm
Product Description
Nickel clad aluminum exothermic coating wire, and the substrate with high strength, mainly used for spraying primer coating having oxidation resistance; but also as a work piece surface coating or repair.And ordinary carbon steel, alloy steel, stainless steel, nitriding steel, cast iron, cast steel, nickel, magnesium, zirconium, titanium, Monel, nickel-chromium alloy can achieve a good metallurgical bond micro.
Equivalent to: Metco 405, Tafa 79B, PMET 884
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(wt%)
| Al | Ni |
| 20.0 | Bal. |
RECOMMENDED SPRAY PARAMETERS
| Diameter | Air Pressure | Voltage | Amperage | Standoff |
| 3.17mm | *50 - 60 psi | *29 - 32 | *100 - 200 | *3 – 6 in (8 - 15cm) |

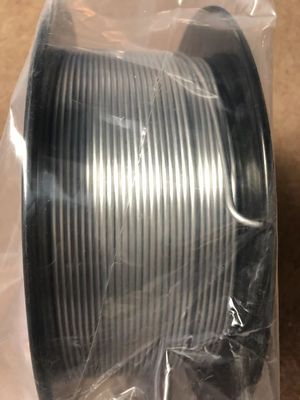

Packing Details
| Diameter | DimensionTolerance | Packing | Wire Weight |
| 2.0mm | +0/-0.05 | D 270 Spool | 5kg/spool |
| 1/8"(3.17mm) | +0/-0.05 | D 270 Spool | 5kg/spool |
Applications
Bond Coat
Dimensional Restoration
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
