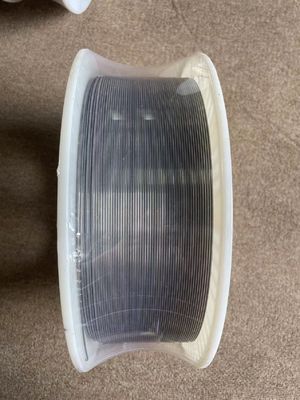

NiAl 95/5 Thermal Spray Wire Tafa 75B Arc Wire Spray Or Combustion Wire Spray
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | NiAl95/5 |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Pressure | *50 - 60 Psi | Voltage | *29 - 32 |
|---|---|---|---|
| Amperage | *100 - 200 | Hardness | HRB 75 |
| Bond Strength | 9500 Psi | Surface | Bright |
| Deposit Rate | 10 Lbs /hr/100A | Treatment | Hydrogen Annealing |
| Stand Off | *4 – 8 In (10- 20cm) | Dimensions | 1.6 Mm, 2.0 Mm, 3.17 Mm |
| Certificate | ISO 9001 | Spool Type | No Recycled Material |
| Spray Wire State | Semi-hard State | ||
| High Light | NiAl 95/5 Thermal Spray Wire,Thermal Spray Wire Tafa 75B,HRB 75 arc wire |
||
Product Description
NiAl 95/5 Wire Thermal Spray Coating Wire Tafa 75B Thermal Spray Wire Arc Wire Spray Or Combustion Wire Spray
Product Description
NiAl 95/5 is a solid thermal spray wires, It can be use as bond coatings and for machine element restoration widely. The materials show an exothermic reaction during the spray process, Also can produce dense coatings with exceptionally high bond strengths that self-bond to most metallic substrates and can tolerate elevated temperatures and oxidizing atmospheres.
Equivalent to: Metco 8400, Tafa 75B, 75E Nickel Aluminum 95/5
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(%)
| Al | Ni |
| 5.0 | Bal |
Specification
95Ni 5Al PWA36937 for PWA271-37 Rev H,
GEAE C07-042 for GE SPM 70-49-38,
B50TF56-S11/CLA(Chem only),
CFMI CP6039 for 70-48-14, Honeywell FP5045,
Type XV Nickel Aluminum
Packing Details
| Diameter | DimensionTolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 20-400kgs/coil |
Applications
• Typical Hardness HRB 75
• Bond Strength 9500 psi
• Deposit Rate 10 lbs /hr/100A
• Deposit Efficiency 70%
• Wire Coverage 0.9 oz/ft2 / m
• Surface Texture *Variable
• Machine ability Good
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 |
1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) |
97MXC |
297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
