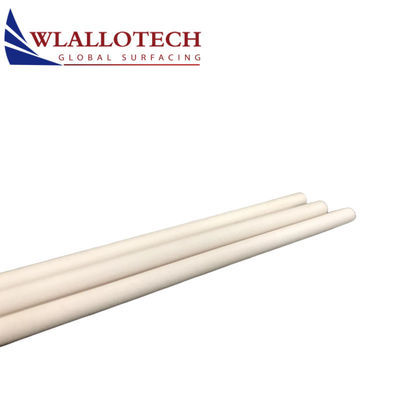

Al2O3 Ceramic Rod Thermal Spray Sealing Parts Valve Seats Mechanical Parts Entry Guide Vanes
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Al2O3 ceramic rod |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 10 tubes per wooden box |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Al2O3 Ceramic Rod | Deposit Efficiency | 72%~80% |
|---|---|---|---|
| Total Porosity | <13% | Bulk Density | 3.1g/cc |
| Hardness | HV1100 | Melt Temperature | 2800 °C |
| Dimensions | φ6.3×605mm | Raw Material | AI2O3,SiO2,TiO2,CaO,NaO2,Fe2O3,MgO |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| Color | White | Weight | 42g |
| High Light | Al2O3 Ceramic Rod,Ceramic Rod Al2O3,Al2O3 ceramic bar |
||
Product Description
Al2O3 Ceramic Rod Thermal Spray Sealing Parts Valve Seats Mechanical Parts Entry Guide Vanes
Product Description
Alumina is a very wear-resistant precision ceramic material with high hardness and wear resistance, corrosion resistance, high temperature resistance, corrosion resistance which is widely used in all walks of life.
Surface Preparation
Surface should be clean, white, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.
Chemical Composition(%)
| Grade (%) | AI2O3 | SiO2 | TiO2 | CaO | NaO2 | Fe2O3 | MgO |
| AI2O3 ceramic rod | 94.42 | 0.80 | 0.01 | 0.12 | 0.31 | 0.04 | 0.30 |
Typical Physical Properties
| Deposit Efficiency | Total porosity | Bulk Density | Coating Hardness | Melt Temperature |
| 72%~80% | <13% | 3.1g/cc | HV1100 |
2800 °C |
Packing Details
| Diameter |
Dimension Tolerance |
Packing | Wire Weight |
| 3/16"(4.763mm) | 0/±0.0012"(±0.03mm) | Tube | 80 |
| 1/4" (6.35mm ) | 0/±0.0012"(±0.03mm) | Tube | 50 |
| 10 tubes per wooden box | |||
Applications
·Sealing parts
·Valve seats
·Mechanical parts
·Roller bearing,Mechanical Seal Faces ,Ceramic Furnace Trays,entry guide vanes
Type We Could Offer
ceramic rod
|
WL TYPE |
Application |
|
Al2O3 ceramic rod |
sealing parts, valve seats |
| Cr2O3 ceramic rod |
pump components |
|
ZrO2 ceramic rod |
thermal insulation ring |
|
Al2O3 TiO2 |
mechanical seal ring |
