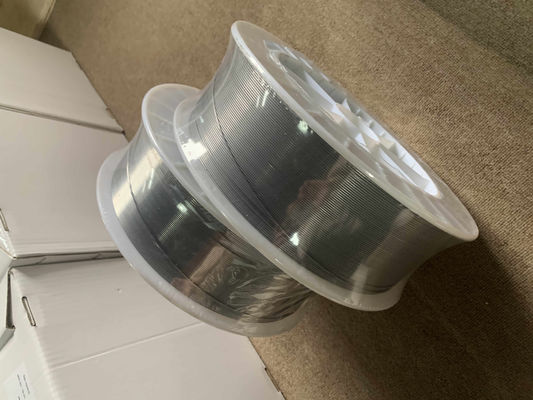

Inconel 718 Thermal Spray Wire Sulzer Metco 8718 Heating Resistance Wire Cryogenic Storage
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Inconel 718 |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 1.6/2.0/3.17mm | Density | 8.2g/cm3 |
|---|---|---|---|
| Melting Point | 1260°C-1340 °C | Hardness | HRB 30 |
| Bond Strength | 9000 Psi | Deposit Rate | 10 Lbs/hr/100A |
| Deposit Efficiency | 70% | Machine Ability | Good |
| Certificate | ISO 9001 | Surface | Bright |
| Spool Type | No Recycled Material | Spray Wire State | Semi-hard State |
| Color | Metal Color | Test Report | Mill-certificate |
| Highlight | Inconel 718 Thermal Spray Wire,Thermal Spray Wire Sulzer Metco 8718,Heating Resistance inconel 718 wire |
||
Product Description
Inconel 718 Sulzer Metco 8718 Nickel Base Alloy Wire Thermal Spray Wire Heating Resistance Wire Cryogenic Storage
Product Description
Inconel 718 is a nickel super alloy frequently used for cryogenic storage tanks,turbines, down hole shafting and well head parts. High tolerance to extremely high and low temperatures allow Inconel 718 to be welded and annealed into products that will withstand extreme conditions. Other uses include jet rocket, nuclear fuel, and pump body components.
Equivalent to: TAFA78T, Sulzer Metco 8718.
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning. Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(wt%)
| Type | Composition(100%) | |||||||
| Ni | Cr | Fe | Others | Ti | Al | Co | ||
| Inconel 718 | 50-55 | 17-21 | Bal | Nb+Ta4.75-5.5 | 0.65-1.15 | 0.2-0.8 |
Max 1.0 |
|
| C | Mn | Si | P | S | Cu | B | Mo | |
|
Max 0.08 |
Max 0.35 |
Max 0.35 |
Max 0.015 |
Max 0.015 |
Max 0.3 |
Max 0.006 |
3 | |
Specifications
| Grade | GE |
|
Inconel 718 |
B50TF202 |
Physical Properties
| Grade | Density | Melting point °C |
|
Inconel 718 |
8.2g/cm3 | 1260°C-1340°C |
Typical Seposit Characteristics
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
|
HRB 30 |
9000 psi | 10 lbs/hr/100A | 70 % | Good |
Packing Details
| Diameter | Dimension Tolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 20-400kgs/coil |
Other sizes can be produced by customers’ requirement.
Applications
· Coating
· Casings
· Instrumentation components
· Nuclear fuel element spacers
· High-strength bolts
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
