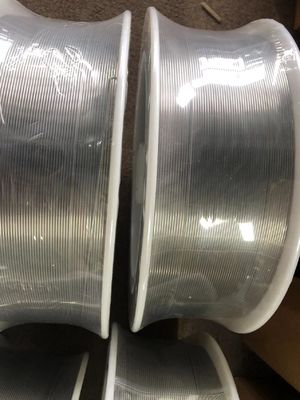

Thermal Spray Wire 316 Stainless Steel SS316 PMET 730 Tafa 85T Metcoloy 4 For Arc/Flame Spray
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-SS316 |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 1.6/2.0/3.17mm | Typical Hardness | HRB 90-100 |
|---|---|---|---|
| Bond Strengt | 6750 Psi | Deposit Rate | 10 Lbs /hr/100A |
| Deposit Efficiency | 75% | Wire Coverage | 0.8 Oz/ft2 / M |
| Surface Texture | *Variable | Machine Ability | Good |
| Certificate | ISO9001 | Surface | Bright |
| Spool Type | No Recycled Material | Spray Wire State | Semi-hard State |
Product Description
Thermal Spray Wire 316 Stainless Steel SS316 PMET 730 Tafa 85T Metcoloy 4 For Arc/Flame Spray
Product Description
SS316 is an 316 stainless steel wire specifically designed for arc spraying. It produces dense,well-bonded coatings with excellent machine ability and wear and corrosion resistance. SS316 is widely used for machine element repair, dimensional restoration and wear resistance applications. It has relatively high shrink characteristics and should not be used for coatings over 0.075 inches thick.
Equivalent to: Tafa 85T, Metcoloy 4, PMET 730
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(wt%)
| Cr | C | Mn | Si | Ni | Fe | Mo |
| 17.0 | 0.08 | 2.0 | 1.0 | 12.0 | Bal. | 2.0-3.0 |
RECOMMENDED SPRAY PARAMETERS
| Diameter | Air Pressure | Voltage | Amperage | Standoff |
| 1.6mm | *50 - 60 psi | *28 - 30 | *100 - 200 | *4 – 6 in (10 - 15cm) |
Packing Details
| Diameter | DimensionTolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 20-400kgs/coil |
Applications
Part Restoration
Food Industry Rolls
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
