Inconel 686 Special Alloy UNS N06686 Overlay Of Ferrous Components For Marine Service
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | Inconel 617 |
| Minimum Order Quantity | 15KG |
| Price | Negotiable |

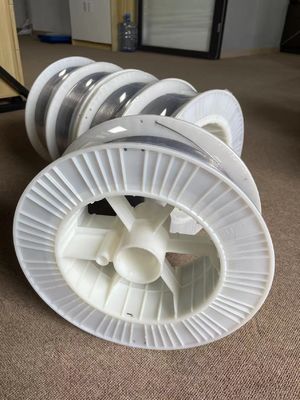

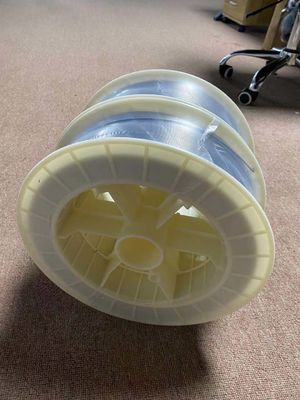

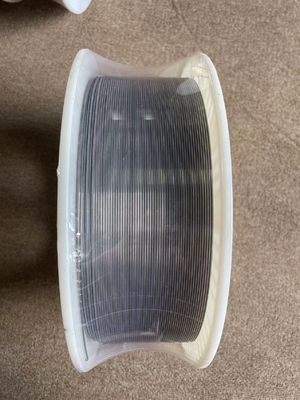

| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Special Alloy | Shape | Wire/ Rod |
|---|---|---|---|
| Color | Bright | Chemical Composition | Ni Cr Fe C Mn Si P S W Mo Ti |
| Sample | Available | Application | Components Of Waste-gas Detoxification Systems |
| Certificate | ISO9001 | Density | 8.73g/cm3 |
| Test Report | Mill-Certificate | Free Documents | CO, Form A E F P, FTA |
| Label | Brand, Neutral Or Customized | Melting Point | 1338°C-1380 °C |
| Size | Customized | ||
| Highlight | Inconel 686 Special Alloy,UNS N06686 Overlay,Marine Inconel 686 Special Alloy |
||
Product Description
Inconel 686 Special Alloy UNS N06686 Overlay Of Ferrous Components For Marine Service
Product Description
INCONEL® alloy 686 (UNS N06686/W.Nr. 2.4606) is a single-phase, austenitic Ni-Cr-Mo-W alloy offering outstanding corrosion-resistance in a range of severe environments. Its high nickel (Ni) and molybdenum (Mo) provide good resistance in reducing conditions, and high chromium (Cr) offers resistance to oxidizing media. Molybdenum (Mo) and tungsten (W) aid resistance to localized corrosion such as pitting. Iron (Fe) is closely controlled to enhance properties. Low carbon (C) helps minimize grain boundary precipitation to maintain corrosion-resistance in the heat-affected zones of welded joints. Resistance to general, pitting and crevice corrosion increases with the alloying (Cr+Mo+W) content, and INCONEL alloy 686 scores higher than competitive materials.
Similar Grade
| UNS | W-Nr |
| N06686 |
2.4606 |
Chemical Composition(%)
| % | Ni | Cr | Fe | C | Mn | Si | P | S | W | Ti | Mo |
| Min | Bal. | 19.0 | 3.0 | 0.02 | 15.0 | ||||||
| Max | 23.0 | 2.0 | 0.01 | 0.75 | 0.08 | 0.04 | 0.02 | 4.4 | 0.25 | 17.0 |
Physical Properties
| Grade | Density | Melting Point | Tensile strength,MPa | Yield strength,MPa | Elongation,% |
| Inconel 686 | 8.73g/cm3 | 1338°C-1380 °C | 740 | 396 | 60 |
Feature
INCONEL alloy 686 exhibits excellent resistance to general, galvanic, and localized corrosion and hydrogen embrittlement in seawater.In addition, seawater has only a minor effect on the fatigue strength of the alloy. Thus, alloy 686 is an ideal material for marine service.
Specification Standard
| Rod,Bar | Pipe, Tube | Plate, Sheet, Strip |
|
ASTM B 462, ASTM B 564 / ASTM B 574 / ASME B 574, DIN 17752, DIN 17753, DIN 17754 |
ASTM B 163 ASTM B 619 ASTM B 622 ASTM B 626 ASTM B 751 ASTM B 775 ASTM B 829 DIN 17751 |
ASTM B 575 / ASME SB 575, ASTM B 906 / ASME SB 906, DIN 17750 |
Welding products: INCO-WELD Filler Metal 686CPT - AWS A5.14 / ERNiCrMo-14, INCO-WELD Welding Electrode 686CPT - AWS A5.11 / ENiCrMo-14
APPLICATIONS
Alloy 686 fasteners (bolts, nuts, studs, etc.) perform well in marine service. Alloy 686 can be strengthened by cold working to yield strength levels of 150 ksi if high strength bolting is required. These high strength fasteners offer essentially the same resistance to corrosion in seawater as annealed material.
INCONEL alloy 686 welding products (INCO-WELD 686CPT) are ideal for overlay of ferrous components for marine service. With their high alloy content and low iron content, overlays deposited with alloy 686 welding products offer excellent corrosion resistance. It is often possible to use thinner overlay deposited with fewer weld layers when using alloy 686 products as compared
