Inconel 617 Special Alloy UNS N06617 High Temperature Alloys For Combustion Cans
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | Inconel 617 |
| Minimum Order Quantity | 15KG |
| Price | Negotiable |

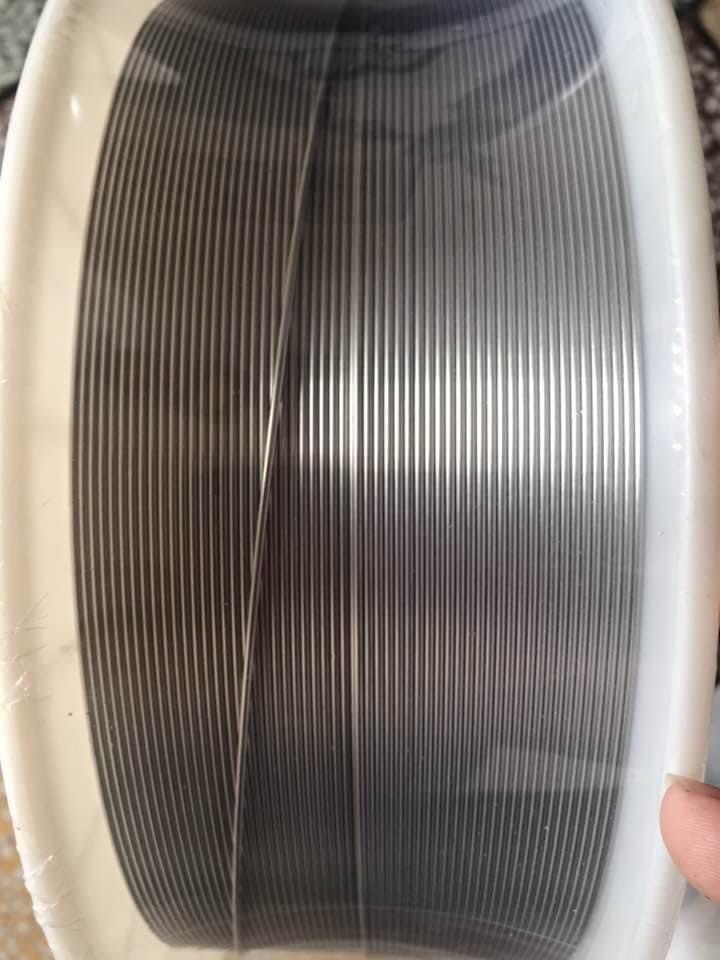

| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Special Alloy | Shape | Wire/ Rod |
|---|---|---|---|
| Color | Bright | Chemical Composition | Ni Cr Fe C Mn Si P S Cu Co Mo Al Ti |
| Sample | Available | Application | Components Of Waste-gas Detoxification Systems |
| Certificate | ISO9001 | Density | 8.36g/cm3 |
| Test Report | Mill-Certificate | Free Documents | CO, Form A E F P, FTA |
| Label | Brand, Neutral Or Customized | Melting Point | 1330°C-1380 °C |
| Size | Customized | ||
| High Light | Inconel 617 Special Alloy,Combustion Cans UNS N06617 Alloys,UNS N06617 High Temperature Alloys |
||
Product Description
Inconel 617 Special Alloy UNS N06617 High Temperature Alloys For Combustion Cans, Ducting And Transition Liners
Product Description
INCONEL® alloy 617 (UNS N06617/W.Nr. 2.4663a) is a nickel-chromium-cobalt-molybdenum alloy with an exceptional combination of metallurgical stability, strength and oxidation resistance at high temperatures. Resistance to oxidation is enhanced by an aluminum addition. The alloy also resists a wide range of corrosive aqueous environments.
The high nickel and chromium contents make the alloy resistant to a variety of both reducing and oxidizing media. The aluminum in conjunction with the chromium, provides oxidation resistance at high temperatures. Solid-solution strengthening is imparted by the cobalt and molybdenum.
Because of its resistance to high-temperature corrosion,the alloy is used for catalyst-grid supports in the production of nitric acid, for heat-treating baskets, and for reduction boats in the refining of molybdenum. INCONEL alloy 617 also offers attractive properties for components of power-generating plants, both fossilfueled and nuclear.
Similar Grade
| UNS | W-Nr |
| N06617 |
2.4663a |
Chemical Composition(%)
| % | Ni | Cr | Fe | C | Mn | Si | P | S | Al | Ti | Mo | Co | Cu |
| Min | 44.5 | 20 | 0,05 | 0.8 | 8.0 | 10.0 | |||||||
| Max | 24 | 3.0 | 0.15 | 1.0 | 1.0 | 0.02 | 0.015 | 1.5 | 0.6 | 10.0 | 15.0 | 0.5 |
Physical Properties
| Grade | Density | Melting Point | Tensile strength,MPa | Yield strength,MPa | Elongation,% |
| Inconel 617 | 8.36g/cm3 | 1330°C-1380 °C | 760 | 310 | 40 |
Feature
With an exceptional combination of metallurgical stability, strength and oxidation resistance at high temperatures. Resistance to oxidation is enhanced by an aluminum addition. The alloy also resists a wide range of corrosive aqueous environments.
Specification Standard
| Rod,Bar | Pipe, Tube | Plate, Sheet, Strip | Pipe fittings | Forgings | Wire |
|
ASTM B166, DIN 17752,ISO 9723 |
ASTM B163.B165, B829 B730.B751 DIN 17751, ISO 6207 |
ASTM B127.B906 DIN 17750, ISO 6208 |
ASTM B366 |
ASTM B564 ISO 9725,DIN 17754 |
ASTM B164 DIN 17753 ISO 9724 |
APPLICATIONS
Used in gas turbines for combustion cans, ducting and transition liners; petrochemical processing; heat-treating equipment; and in nitric acid production.
