Colmonoy 226 Nickel Base Powder Ni 226 Blow Heads Edges And Repairs Blow-Blow Plungers

  • Colmonoy 226 Nickel Base Powder Ni 226 Blow Heads Edges And Repairs Blow-Blow Plungers
Place of Origin China
Brand Name WL-ALLOTECH
Model Number Colmonoy 225
Minimum Order Quantity 5kg
Price Negotiable
Packaging Details 5kg/bottles, 4 bottles pack in one carton
Delivery Time within 10 days
Payment Terms L/C, T/T
Supply Ability 300 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nickel Base Alloy Powder Color Gray
Shape Powder Certificate ISO 9001
HRC 16-21 Dimensions Customized
Test Report Mill-certificate Density 8.58 G/cc
Equivalent Colmonoy 226 Label Brand, Neutral Or Customized
Packing 5kg/bottles, 4 Bottles Pack In One Carton Process PTA, HVOF, Laser Cladding, Plasma Spray
High Light

Colmonoy 226

,

Colmonoy 226 Gray

,

Ni 226 Nickel Base Powder
Leave a Message
Product Description

Colmonoy 226 Nickel Base Powder Ni-226 Powder Blow Heads Edges And Repairs Blow-Blow Plungers

Product Description

It is a nickel base alloy for repairing cast iron parts which can be deposited using fuse welder torch. Deposits of these alloy have high oxidation resistance. Used in foundries for repair of castings or mould parts & in the glass industries. It can also be used in repairing surface flaws in cast iron parts.

Patented alloy specially designed for glass container mold protection and restoration. Also used for rebuilding automotive parts (clutch components).



HRC: 16-21
Common Name: Colmonoy 226





Surface Preparation

Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the
surface to be coated. Note: It is best not to handle surfaces after cleaning.
Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide,
rough grind, or rough machine in a lathe.





Chemical Composition(%)

B Si P Ni
0.8 2.2 1.9 Bal.



Particle size (µm)

Granularity: 36-106μm,20-106μm,53-150μm

Other sizes can be produced by customers’ requirement.

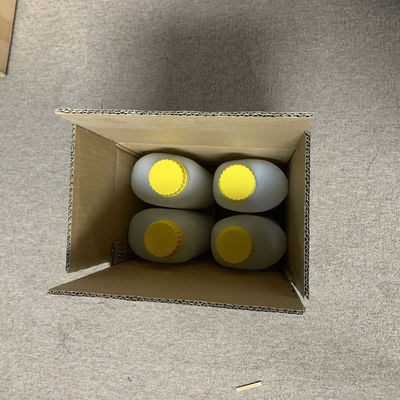

Packing Details

Each bottle 5kg/bottles, 4 bottles pack in one carton,

then put cartons onto pallet or Box. OEM packing & label or customized packing methods available.

Colmonoy 226 Nickel Base Powder Ni 226 Blow Heads Edges And Repairs Blow-Blow Plungers 0





Applications

Blow heads

Edges and repairs

Blow-blow plungers

Guide rings

Baffles





Type we could offer

Trademark Nominal Composition(%) HRC Application
B C Cr Fe Mo Si W Ni Others
WLNi-63 3.0 0.6 15.0 4.0   4.5   Bal.   58-61 Excellent abrasion and corrosion resistance.
WLNi-62 3.2 0.7 15.5 4.0   4.2   Bal.   56-64 shafts, sleeves, pump plungers, sucker rod couplings, bed knives, camshafts, bushings, mill guides, mixer blades, seal rings, brick manufacturing equipment, and conveyor screws.
WLNi-705 1.5 2.2 7.0 2.0   2.3 48.1 Bal.   56-63 protection from severe sliding abrasion. Used on screw conveyors and augers
WLNi-750 1.6 3.0 6.8 2.0   1.5 48.0 Bal. Co: 6.0 57-63 A tough nickel-chromium-tungsten matrix alloy is used to hold extremely hard tungsten-carbide particles. Best used for the most severe abrasive conditions. Finished by grinding.
WLNi-225 0.8         2.3   Bal. P:2.0 13-17

For glass container mould protection and restoration.

Also used for rebuilding automotive parts (clutch components).
WLNi-226 0.8         2.2   Bal.

P:1.9



 16-21

Blow heads, edges and repairs

blow-blow plungers, guide rings, baffles
WLNi-227 1.1         2.8   Bal. P:2.1 22-27

For glass container mould protection and restoration.

Also used for rebuilding automotive parts (clutch components).
WLNi-234 1.0 0.15 4.0   3.0 2.8   Bal. P:2.1 32-36 For glass container mould protection and restoration.
WLNi-4 2.1 0.4 10.0 2.8   2.4   Bal.   35-40 Aircraft gas turbines, steam turbine power plants, turbochargers and valves in reciprocating engines, prosthetic devices, heat treating equipment, pollution control equipment, coal gasification and liquefaction systems, and components in pulp and paper mills.
WLNi-7631-60F 1.16 2.58 6.08 1.80   1.82 57.66 Bal.     Aircraft gas turbines, steam turbine power plants, turbochargers and valves in reciprocating engines, prosthetic devices, heat treating equipment, pollution control equipment, coal gasification and liquefaction systems, and components in pulp and paper mills.
WLNi-42 2.0 0.4 10.0 2.5   3.0   Bal.   35-40 Less hardness and slightly less abrasion and corrosion resistance.
WLNi-22 1.0 0.1 0.05 0.03   3.0   Bal.   28-33 Bottle moulds, cast iron parts
WLNi-22-KW 1.0 0.1 0.05 0.03   3.0   Bal. P:2.0 28-32 Aircraft gas turbines, steam turbine power plants, turbochargers and valves in reciprocating engines, prosthetic devices, heat treating equipment, pollution control equipment, coal gasification and liquefaction systems, and components in pulp and paper mills.
