Colmonoy 42 Sentesbir 9040 Nickel Based Powder Clutch Components Guide Rings Glass Container Sucker Rod Couplings
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Colmonoy 42 powder |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 4 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Dimensions | Customized |
|---|---|---|---|
| Color | Gray | Hardness | HRC35-40 |
| Equivalent | Colmonoy 42 | Product Name | Nickel Base Alloy Powder |
| Standard | AWS 5.21-2001 | Material | C Si B Cr Fe Ni |
| Packing | 5kg Bottle/20kg Carton | Process | PTA, HVOF, Laser Cladding, Plasma Spray |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| High Light | Colmonoy 42 Nickel Based Powder,9040 Nickel Based Powder,42 colmonoy powder |
||
Product Description
Colmonoy 42 Sentesbir 9040 Nickel Base Powder Clutch Components Guide Rings Glass Container Sucker Rod Couplings
Product Description

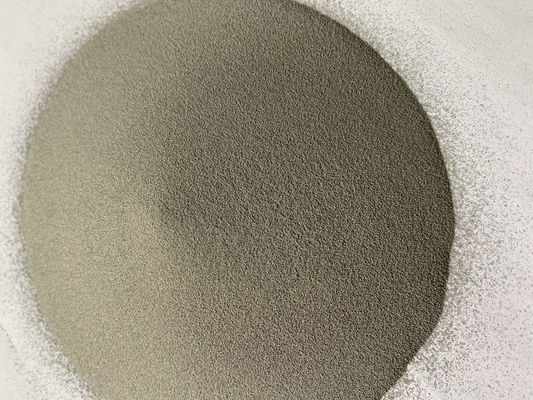

WLNi42 is a nickel based surfacing alloy powder with better ductility, and it’s tougher than Ni52. It has less hardness and slightly less abrasion and corrosion resistance. Finished by carbide tools and grinding. The method of application can be spraywelder and HVOF.
Common Names: Colmonoy 42
Standard: AWS 5.21-2001
Hardness: HRC35-40
Chemical Composition(%)
| C | Si | B | Cr | Fe | Ni |
| 0.4 | 3.0 | 2.0 | 10.0 | 2.5 | Balance |
Packing Details
Each bottle 5kg/bottles, 4 bottles pack in one carton,
then put cartons onto pallet or Box. OEM packing & label or customized packing methods available.
Applications
Plungers
Blank moulds, blow moulds,
Bottom plates
Guide rings and baffle plates
Type we could offer
| Trademark | Nominal Composition(%) | HRC | Application | ||||||||
| B | C | Cr | Fe | Mo | Si | W | Ni | Others | |||
| WLNi-63 | 3.0 | 0.6 | 15.0 | 4.0 | 4.5 | Bal. | 58-61 | Excellent abrasion and corrosion resistance. | |||
| WLNi-62 | 3.2 | 0.7 | 15.5 | 4.0 | 4.2 | Bal. | 56-64 | shafts, sleeves, pump plungers, sucker rod couplings, bed knives, camshafts, bushings, mill guides, mixer blades, seal rings, brick manufacturing equipment, and conveyor screws. | |||
| WLNi-705 | 1.5 | 2.2 | 7.0 | 2.0 | 2.3 | 48.1 | Bal. | 56-63 | protection from severe sliding abrasion. Used on screw conveyors and augers | ||
| WLNi-750 | 1.6 | 3.0 | 6.8 | 2.0 | 1.5 | 48.0 | Bal. | Co: 6.0 | 57-63 | A tough nickel-chromium-tungsten matrix alloy is used to hold extremely hard tungsten-carbide particles. Best used for the most severe abrasive conditions. Finished by grinding. | |
| WLNi-225 | 0.8 | 2.3 | Bal. | P:2.0 | 13-17 |
For glass container mould protection and restoration. Also used for rebuilding automotive parts (clutch components). |
|||||
| WLNi-226 | 0.8 | 2.2 | Bal. |
P:1.9
|
16-21 |
Blow heads, edges and repairs blow-blow plungers, guide rings, baffles |
|||||
| WLNi-227 | 1.1 | 2.8 | Bal. | P:2.1 | 22-27 |
For glass container mould protection and restoration. Also used for rebuilding automotive parts (clutch components). |
|||||
| WLNi-234 | 1.0 | 0.15 | 4.0 | 3.0 | 2.8 | Bal. | P:2.1 | 32-36 | For glass container mould protection and restoration. | ||
| WLNi-4 | 2.1 | 0.4 | 10.0 | 2.8 | 2.4 | Bal. | 35-40 | Aircraft gas turbines, steam turbine power plants, turbochargers and valves in reciprocating engines, prosthetic devices, heat treating equipment, pollution control equipment, coal gasification and liquefaction systems, and components in pulp and paper mills. | |||
| WLNi-7631-60F | 1.16 | 2.58 | 6.08 | 1.80 | 1.82 | 57.66 | Bal. | Aircraft gas turbines, steam turbine power plants, turbochargers and valves in reciprocating engines, prosthetic devices, heat treating equipment, pollution control equipment, coal gasification and liquefaction systems, and components in pulp and paper mills. | |||
| WLNi-42 | 2.0 | 0.4 | 10.0 | 2.5 | 3.0 | Bal. | 35-40 | Less hardness and slightly less abrasion and corrosion resistance. | |||
| WLNi-22 | 1.0 | 0.1 | 0.05 | 0.03 | 3.0 | Bal. | 28-33 | Bottle moulds, cast iron parts | |||
| WLNi-22-KW | 1.0 | 0.1 | 0.05 | 0.03 | 3.0 | Bal. | P:2.0 | 28-32 | Aircraft gas turbines, steam turbine power plants, turbochargers and valves in reciprocating engines, prosthetic devices, heat treating equipment, pollution control equipment, coal gasification and liquefaction systems, and components in pulp and paper mills. | ||
