Wc-12co 1342VM Woka3102 Tungsten Carbide Powder For Thermal Spraying Carbide Metal Water Conservancy Carbide Metal
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Wc-12co powder |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 4 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Color | Gray |
|---|---|---|---|
| Porosity % | AVG<1% | Bonding Strength | >70Mpa |
| Deposition Efficiency | ≥45% | HV0.3 | 950-1350 |
| Flow Rate | ≤25s/50g | Apparent Density | 4.4-5.2g/cm3 |
| Dimensions | -45+15um , -38+10um | Raw Material | Tungsten Carbide |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| High Light | Wc-12co Tungsten Carbide Powder,Woka3102 Tungsten Carbide Powder,1342VM tungsten carbide dust |
||
Product Description
Wc-12co 1342VM Woka3102 Tungsten Carbide Powder For Thermal Spraying Carbide Metal Water Conservancy Carbide Metal
Product Description

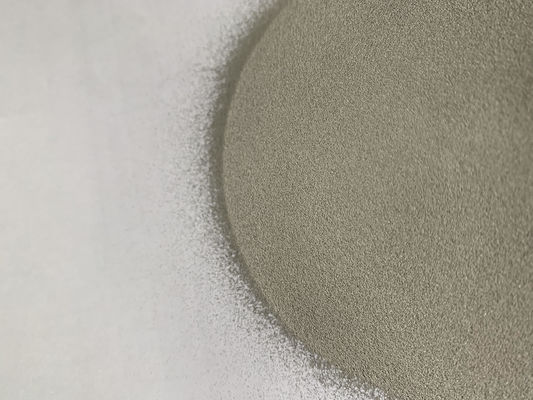

88WC-12Co is a tungsten carbide powder for HVOF thermal spray coatings. It has performance feature such as Low temperature wear resistance, Corrosion resistance.The Operating temperatures up to 900 ° F (482 ° C). It's widely used for variety of high wear applications including erosion, abrasion and sliding wear.
Equivalent to: PMET 88-12,FST K-624,Metco 5812,Praxair 1342,Amperit 518
Chemical Composition
| Item | Standards | Mesured Data |
| Carbon total | 5.20-5.70 | 5.46 |
| Free Carbon | ≤0.10 | 0.09 |
| WC | 87.0-89.0 | ---- |
| Co | 11.0-13.0 | 12.09 |
| Fe | ≤0.5 | 0.01 |
| O | ≤0.10 | 0.031 |
Typical Deposit Characteristics
| HV0.3 | Porosity % | Bonding strength | Deposition efficiency |
| 950-1350 | AVG＜1% | ＞70Mpa | ≥45% |
Physical Properties
| Item | Flow Rate(s/50g) | Apparent Density (g/cm3) |
| Standards | ≤25 | ≥4.4-5.2 |
Packing Details
Granularity:-45/+15μm Packing: 5 kg/bottle 4 bottles/box
Typical uses and Applications
1, the metallurgical industry guide roller, conveyor roller, sink stick
2, paper printing machinery corrugated stick, anilox stick, pressure bachelor and so on
3, water conservancy, mining and other industries spiral rod, impeller, etc. to strengthen the repair
Type We Could Offer
Thermal spray powder-Carbide
| WL TYPE | Kennametal | PMET | Others | Size |
| WL-WC 12Co | JK112 | Pmet 88-12 | 1342VM/Woka 3102 | Customized |
| WL-WC 10Co 4Cr | JK120 | Pmet 86-10-4 | 1350VM/Woka 3652 | Customized |
| WL-WC 17Co | JK117 | Pmet 83-17 | 1343VM/Woka 3202 | Customized |
| WL-WC 10Ni | JK6189 | Pmet 90-10 | 1310VM/Woka 3302 | Customized |
| WL-Cr3C2-25NiCr | JK135 | Woka7200 | Customized | |
| WL-Cr3C2-20NiCr | Woka7100 | Customized | ||
| WL-60%WC+NiCrBSi | Customized | |||
| WL-60%WC+NiBSi | Customized |
