Cobalt Based Alloy Forging Components Chrome Alloy By CNC Machining Precision Casting Machinery Metal
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Casting |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Density | 8.35g/cm3 | Hardness | 38-44 |
|---|---|---|---|
| Type | Sleeve | Application | Oil&Gas Industry |
| Material | Cobalt Based Alloy | Size | Can Be Customized |
| Properties | Wear And Corrosion Resistance | Usage | Cooperate With Other Shaft And Axle |
| Instructions | Drawing Made Upon Cutomers Request | Tolerance Control | Turning Or Grinding Surface , Tolerance Upon Drawing |
| Certificate | ISO 9001 | ||
| High Light | Cobalt Based Alloy Forging Components,Forging Components Chrome Alloy,ISO 9001 forging part |
||
Product Description
Cobalt Based Alloy Chrome Alloy By CNC Machining Precision Casting Machinery Metal
Product Description
Castings are metal forming objects obtained by various casting methods, that is, the smelted liquid metal is injected into the pre-prepared casting mold by pouring, pressing, inhaling or other casting methods, and after cooling, grinding and other subsequent processing means, the objects with certain shape, size and performance are obtained.
cobalt based alloy/stellite alloy is a range of cobalt-chromium-tungsten alloys designed for wear resistance, corrosion resistance and high termal resistance. It has excellent wear and corrosion resistance performance at relatively high temperature. It is widely used in oil&gas, metallurgy, machinery, wood cutting, automotive, paper and food processing industries etc.
Chemical Composition
| Grade | C | Mn | Si | Cr | Ni | Mo | W | Co | Fe | P | S |
| WL-Co6Z | 0.9-1.4 | 1.0 | 1.5 | 27-31 | 3.0 | 1.5 | 3.5-5.5 | Bal. | 3.0 | ≤0.03 | ≤0.03 |
Physical Properties
| Grade |
Density |
Hardness (HRC) |
| WL-Co6Z | 8.35g/cm3 | 38-44 |
Packing Details
Diameter 8-500mm and maxium length 700mm
Other Sizes can be produced by customers’ requirement.
Typical uses and Applications

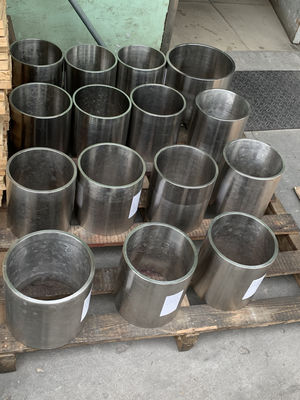

- Gas pump sleeve
- soild bushing sleeve
- rotary sleeve
- bearing bush
- up anddown sleeve
- bushings etc.
Type We Could Offer
| Trademark | Grade | Chemical composition (%) | Hardness HRC |
||||||||
| C | Cr | W | Si | Fe | Mo | Mn | Ni | Co | |||
| WL 1Z | Co1 | 2.5 | 29 | 12 | 1 | 3 | 1 | 1 | 3 | Bal. | 48-53 |
| WL 3Z | Co3 | 2.5 | 30 | 12.5 | 1 | 3 | 1 | 1 | 3 | Bal. | 48-53 |
| WL 4Z | Co4 | 0.9 | 32 | 14 | 1 | 1 | 0.5 | 0.5 | 0.5 | Bal. | 43-47 |
| WL 6Z | Co6 | 1.2 | 29 | 4.5 | 1.5 | 3 | 1.5 | 1 | 3 | Bal. | ≥37 |
| WL12Z | Co12 | 1.6 | 29 | 8 | 1.5 | 2.5 | 1 | 1 | 3 | Bal. | 45-50 |
| WL20Z | Co20 | 2.5 | 32 | 17 | 1 | 2.5 | 1 | 1 | 2.5 | Bal. | 52-58 |
| WL21Z | Co21 | 0.25 | 27 | -- | 1 | 3 | 3.5 | 1 | 2.75 | Bal. | ≤34 |
| WL31Z | Co31 | 0.5 | 25.5 | 7.5 | 1 | 2 | 0.5 | 1 | 10.5 | Bal. | ≤34 |
| WL33Z | Co33 | 2.3 | 33 | 17.5 | 1 | 2 | -- | 0.8 | 1 | Bal. | ≥52 |
| WL400Z | CoT400 | 0.04 | 8 | -- | 2.6 | ≤2 | 27 | -- | -- | ≥62 | 52-55 |
| WL800Z | CoT800 | 0.1 | 18 | -- | 3 | ≤2 | 28.5 | -- | ≤1 | Bal. | ≥50 |
