Stellite 190 Welding Hard Facing Powder Cobalt Alloy Powder Tri-Cone Rock Bits For Oil Drilling
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-Co190 |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 4 bottles/carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hard Facing Powder | Color | Dark Gray |
|---|---|---|---|
| Chemical Composition | Co Cr W Mo Ni Fe | Equivalent | BISHILITE(MHA) No.190, Stoodite 190 |
| Welding Process | Oxy-acetylene (OAW) / TIG (GTAW) / ERW / Plasma | Size | Customized |
| Certificate | ISO 9001 | Hardness | 55-60 HRC |
| Mill-Certificate | Available | Material | Cobalt Based Alloy Powder |
| Packing | 5kg Bottle/20kg Carton | Standard | ASME/AWS: 5.21 ERCoCr-G |
Product Description

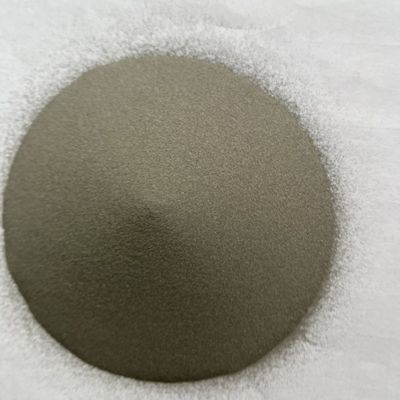

Stellite 190 Welding Hard Facing Powder Cobalt Alloy Powder Tri-Cone Rock Bits For Oil Drilling
Product Description
WLCo 190 is a highly wear-resistant alloy primarily used for surfacing the bearing journal of tricone rotary drill bits used in the oil and gas industry. Tricone drill bits are designed to operate at high temperatures and in extremely abrasive downhole conditions. Due to the high proportion of carbides that provide wear resistance, care must be taken to minimize the cooling stress generated during the surfacing process and to avoid conditions of use that involve severe mechanical or thermal shock.
WLCo-190 is not designed primarily as a corrosion resistant alloy, although it may be expected to have reasonable corrosion resistance to brackish water and mildly oxidizing environments. The high carbide content reduces its corrosion resistance relative to other CoCrW alloys, such as WLCo-6.
Common Name: Stellite® 190
CHEMICAL COMPOSITION(%)
| C | Si | Mn | Mo | Cr | W | Ni | Fe | Co |
| 3.3 | 1.0 | ≤1.00 | ≤1.00 | 27.00 | 14.00 | ≤1.00 | ≤3.00 | Rest |
Particle size (µm)
180/53, 180/63, 150/45, 150/63, 150/53, 125/38, 250/45, 45/20, 53/20
Packing Details
Each bottle 5kg/bottles, 4 bottles/carton
OEM packing & label or customized packing methods available.
APPLICATIONS
Used for rock bits
Rock bits for oil drilling
Tri-Cone Rock Bits for Oil Drilling
Type we could offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
