Stellite 12 Weartech WT-12 Stellite 12 Green Hard Facing Rod Green Color plastics Paper-making Chemical fiber
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | stellite 12 rod |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | Each tube 5kg, 4 tubes pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stellite 12 | Color | Green |
|---|---|---|---|
| Standard | ASME/AWS: 5.21 ERCoCr-B | Mill Certificate | Available |
| Test Report | Mill-certificate | Certificate | ISO 9001 |
| Diameter | Customized | Hardness | HRC 44-50 |
| Packing | 5kg Tube/20kg Carton | Process | PTA / Laser Cladding / HVOF / Plasma Spray/ 3D Printing |
| Equivalent | Stellite 12, BISHILITE (MHA) No.12, Weartech WT-12, Stoodite 12, POLYSTEL 12 | Application | Pre-protection Of Plastics, Paper-making, Chemical Fiber, Cutter High-pressure Valve Etc |
| Melting Range | 1200-1365 ºC | Shape | Rod |
Product Description
Stellite 12 Weartech WT-12 Stellite 12 Green Hard Facing Rod Green Color Plastics Paper-Making Chemical Fiber
Product Description
Allotech WL-Co12 that produces a deposit for high heat and corrosion resistance, with excellent wear properties. The Machinability, WL-Co12 makes it a good choice for knife cutting edges in the carpet, paper, and plastic industry. WL-Co12 deposits provide resistance to all types of wear, including galling. It can be applied to all weldable steels, including stainless steels.
Another similar type is Co 12H rod, which has higher hardness.
Common Names: Stellite 12, BISHILITE (MHA) No.12, Weartech WT-12, Stoodite 12, POLYSTEL 12
Standard: AWS 5.21-2001 ERCoCr-B
Chemical Composition(%)
|
C |
Si |
Mn |
Mo |
Cr |
W |
Ni |
Fe |
Co |
|
1.4 |
1.30 |
≤1.00 |
≤1.00 |
30.00 |
8.5 |
≤3.00. |
≤3.00 |
Rest |
Characterisitic
|
AWS / ASME: A5.21 / SFA5.21 ERCoCr-B |
|
|
Metal to metal Wear |
Excellent |
|
Cold / Hot Abrasion |
Excellent/Excellent |
|
Erosion / Corrosion |
Excellent/Excellent |
|
Deposit Layers |
2 Max |
|
Impact |
Good |
|
Magnetic |
No |
|
Thermal Conductivity |
14.6 W/m.K, 100 Btu-in/hr/ft2/°F |
|
Electrical Resistivity |
98 µ-ohm.cm, 38.6 µ-ohm.cm |
Packing Details

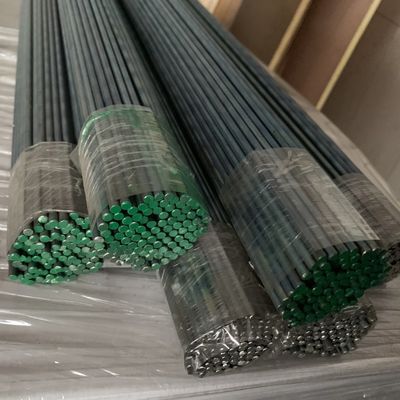

For length 350mm 500mm pack in carton each 5kg
For 1000mm packing in 5kg tube, 4 tubes in one 20kg carton
For length more than 1000mm, pack in wooden box directly
Applications
Used for pre-protection of plastics, paper-making, chemical fiber, cutter and blade Outlet valve sealing surface
High temperature and high-pressure valve
Type We Could Offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
