UNS NO6002 3D Printing Metal Powder NC22FeD NiCr22FeMo Nimonic PE13D For Aero Engine Combustion Chambers
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-AM Hastelloy X |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 5 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Applicable Process | SLM |
|---|---|---|---|
| Particle Size Distribution | 15~53um/15-45um | Hall Flow Rate S/50g | 15.5s/50g |
| Bulk Density G/cm³ | 4.2 | Tap Density | 4.6 |
| Oxygen Content | ≤200ppm | Certificate | ISO 9001 |
| Sphericity | ≥0.85 | Elongation | ≥20.0% |
| High Light | UNS NO6002 3D Printing Metal Powder,3D Printing Metal Powder NC22FeD,Hastelloy X Powder |
||
Product Description
Hastelloy X Powder UNS NO6002 NC22FeD NiCr22FeMo Nimonic PE13D Printing Metal Powder For Aero-Engine Combustion Chambers
Description
Hastelloy X powder is a solid solution strengthened deformed superalloy. The alloy has medium durability and creep strength below 900 °C, and has good oxidation resistance and corrosion resistance. It is suitable for the manufacture of components such as aero-engine combustion chambers that are used for a long time below 900 °C;
Grade:GH3536(GH536,SG-5)(China),Similar Grade UNS NO6002,Hastelloy X(the United States),NC22FeD(France),NiCr22FeMo(Germany),Nimonic PE13(the United Kingdom)
Reference Standard:GB/T14992
Chemical composition:
| Grade | Elements(wt.%) | |||||||||
| C | Cr | Ni | Co | W | Mo | Al | Ti | |||
| HX | 0.05-0.15 | 20.5-23.0 | Balance | 0.5-2.5 | 0.2-1.0 | 8.0-10.0 | ≤0.5 | ≤0.15 | ||
| no more than | ||||||||||
| Fe | V | B | Si | Mn | S | P | Cu | |||
| 17.0-20.0 | - | ≤0.01 | 1.00 | 1.00 | 0.025 | 0.015 | 0.50 | |||

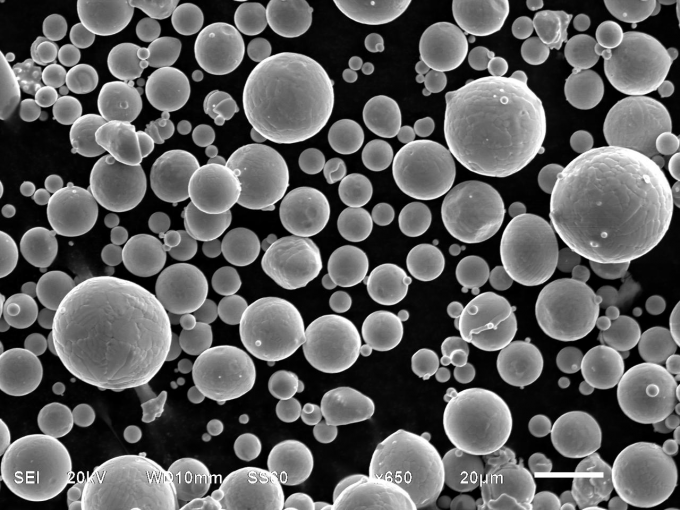

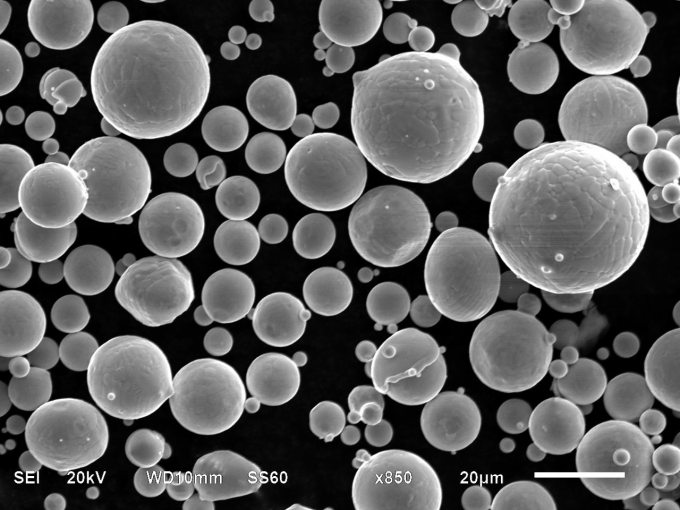

SEM:
Flowability:
| Particle Size | 0~15μm | 15~53μm | 45~105μm | 45~150μm |
| Flowability(a) | × | ≤25s | ≤20s | ≤20s |

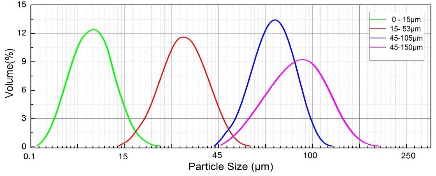

Particle Size Distribution:
Applications
Aero engine combustion chamber components, honeycomb structures, diffusers, tail nozzles and other hot end components.
Packing Details
Product specifications: 0-45μm, 0-53μm, 15-45μm, 15-53μm, 45-150μm.
(Various particle size metal powders can be customized according to customer requirements)
Type We Could Offer
| Main products list of 3D printing powder | ||||
| Product name | Alloy Grade | Appearance | Purity | particle size |
| Aluminum powder | WL-AlSi10Mg | Sliver powder | 99.90% | 15-58μm |
| Aluminum powder | WL-AISi10Mg | Sliver powder | 99.90% | 15-58μm |
| Nickel based superalloy powder | WL-IN625 | Gray powder | 99.90% | 15-53μm |
| Nickel based superalloy powder | WL-IN718 | Gray powder | 99.92% | 15-53μm |
| Cobalt-chromium alloy powder | WL-CoCrMo | Sliver powder | 99.80% | 15-54μm |
| Cobalt-chromium alloy powder | WLCoCrW | Sliver powder | 99.80% | 15-55μm |
| Titanium alloy powder | WL-TC4 | Sliver powder | 99.85% | 15-53μm |
| Stainless steel powder | WL-316L | Sliver powder | 99.92% | 15-53μm |
