Stellite 190 Welding Hard Facing Powder Hardfacing Material For Petroleum Drill Bit
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-Co190 |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 4 bottles/carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Color | Dark Gray |
|---|---|---|---|
| Chemical Composition | Co Cr W Fe C Ni Si | Sample | Available |
| Process | PTA, HVOF, Laser Cladding, Plasma Spray, Spray-Fuse | Application | Hardfacing & Wear-resistant Welding |
| Certificate | ISO9001 | Hardness | 55-60 HRC |
| Test Report | Mill-Certificate | Free Documents | CO, Form A E F P, FTA |
| Label | Brand, Neutral Or Customized | Currency | USD/EUR/GBP/RMB |
| High Light | Stellite 190 Hard Facing Powder,Hard Facing Powder 60HRC,ISO9001 hardfacing material |
||
Product Description

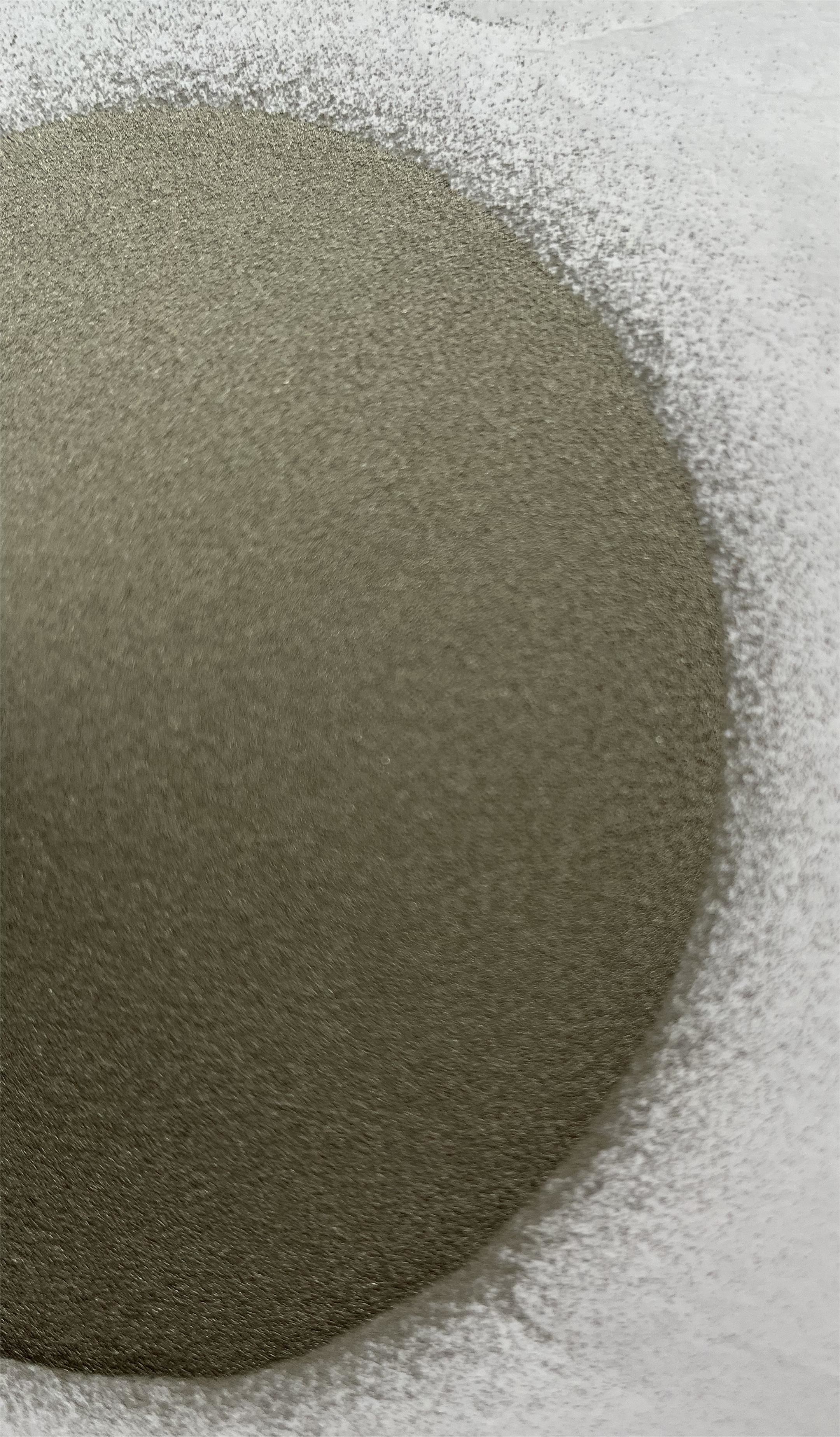

Factory Stellite 190 Welding Powder Hardfacing Material For Petroleum Drill Bit
Product Description
WLCo-190 is a highly abrasion-resistant alloy, primarily used for the hardfacing of bearing journals in tricone rotary rock bits used in the Oil and Gas Industry. Tricone bits operate in hot and extremely abrasive downhole conditions. Due to the high proportion of carbides, which provide the abrasion resistance, care must be taken to minimize cooling stresses incurred during hardfacing and to avoid service conditions which involve severe mechanical or thermal shock. It can only be finished by grinding.
WLCo-190 is not designed primarily as a corrosion resistant alloy, although it may be expected to have reasonable corrosion resistance to brackish water and mildly oxidizing environments. The high carbide content reduces its corrosion resistance relative to other CoCrW alloys, such as WLCo-6.
Common Name: Stellite® 190
CHEMICAL COMPOSITION(%)
| C | Si | Mn | Mo | Cr | W | Ni | Fe | Co |
| 3.3 | 1.0 | ≤1.00 | ≤1.00 | 27.00 | 14.00 | ≤1.00 | ≤3.00 | Rest |
Particle size (µm)
180/53, 180/63, 150/45, 150/63, 150/53, 125/38, 250/45, 45/20, 53/20
Packing Details

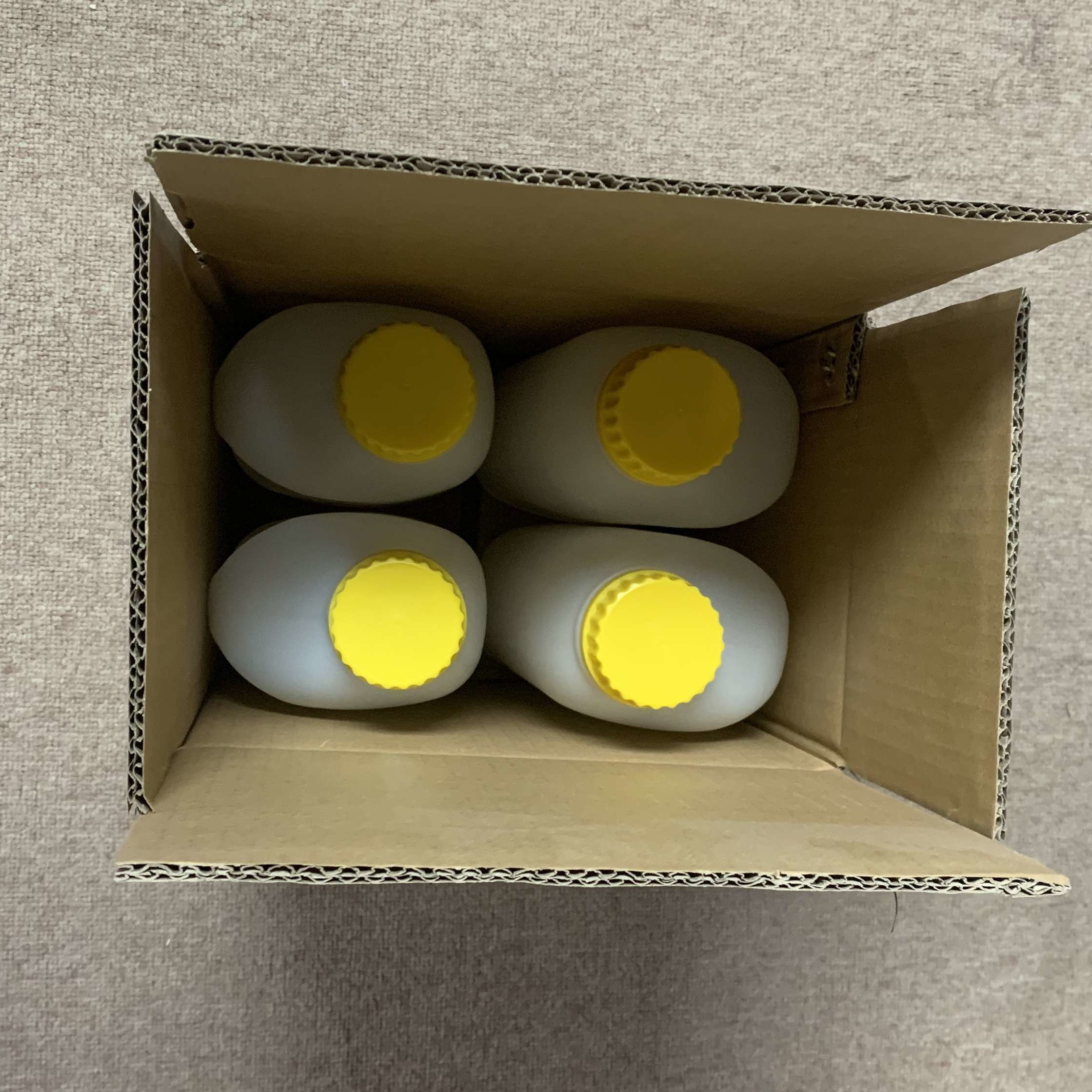

Each bottle 5kg/bottles, 4 bottles/carton
OEM packing & label or customized packing methods available.
APPLICATIONS
Used for rock bits
Rock bits for oil drilling
Tri-Cone Rock Bits for Oil Drilling
Type we could offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
