Co32 Hard Facing Powder Stellite 32 Cobalt Base Wear Resistant Welding For Engine Valve
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-Co32 |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 5 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Color | Dark Gray |
|---|---|---|---|
| Chemical Composition | Co Cr W Fe C Ni Si | Sample | Available |
| Process | PTA, HVOF, Laser Cladding, Plasma Spray, Spray-Fuse | Application | Hardfacing & Wear-resistant Welding |
| Certificate | ISO9001 | Hardness | 38-44 HRC |
| Test Report | Mill-Certificate | Free Documents | CO, Form A E F P, FTA |
| Label | Brand, Neutral Or Customized | Currency | USD/EUR/GBP/RMB |
| High Light | Co32 Hard Facing Powder,Hard Facing Powder Stellite 32,Wear Resistant Welding cobalt powder |
||
Product Description

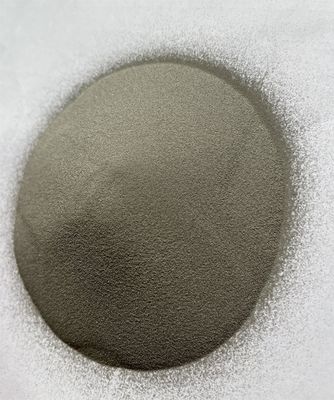

Co32 Powder Stellite 32 Powder Cobalt Base Hardfacing & Wear-Resistant Welding Powder For Engine Valve
Product Description
WL-Co32 has been designed specifically for the hardfacing of internal combustion engine valves to give enhanced resistance to corrosion and erosion. Slightly higher hardness and fluidity than Stellite 6, and enhanced resistance to erosion and corrosion.
Common Name: Stellite® F
CHEMICAL COMPOSITION(%)
| C | Si | Mn | Mo | Cr | W | Ni | Fe | Co |
| 1.7 | 1.2 | ≤1.00 | ≤1.00 | 26.00 | 12.00 | 22.00 | ≤3.00 | Rest |
Particle size (µm)
180/53, 180/63, 150/45, 150/63, 150/53, 125/38, 250/45, 45/20, 53/20
Packing Details
Each bottle 5kg/bottles, 5 bottles pack in one carton,
then put cartons onto pallet or Box. OEM packing & label or customized packing methods available.
APPLICATIONS
Engine Valve
Automobile engine valve
chemical engineering valve
Engine Valves and Seats
Type we could offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
