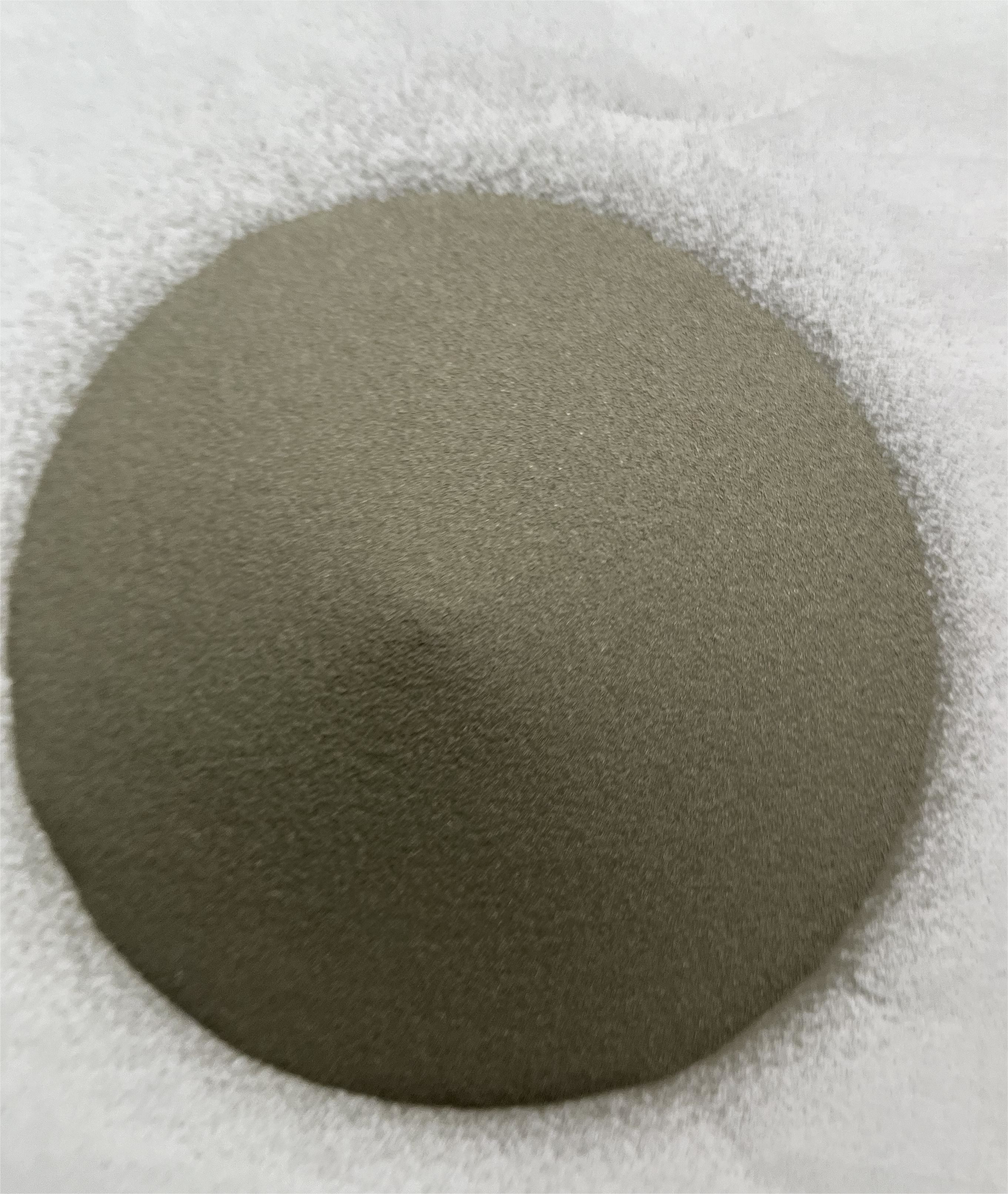

Stellite 190 Welding Hard Facing Powder For Rock Bits

  • Stellite 190 Welding Hard Facing Powder For Rock Bits
  • Stellite 190 Welding Hard Facing Powder For Rock Bits
Place of Origin China
Brand Name WL
Model Number WL-Co190
Minimum Order Quantity 5KG
Price Negotiable
Packaging Details 5kg/bottles, 5 bottles pack in one carton
Delivery Time within 10 days
Payment Terms L/C, T/T
Supply Ability 300 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shape Powder Color Dark Gray
Chemical Composition Co Cr W Fe C Ni Si Sample Available
Process PTA, HVOF, Laser Cladding, Plasma Spray, Spray-Fuse Application Hardfacing & Wear-resistant Welding
Certificate ISO9001 Hardness 55-60 HRC
Test Report Mill-Certificate Free Documents CO, Form A E F P, FTA
Label Brand, Neutral Or Customized Currency USD/EUR/GBP/RMB
High Light

Welding Hard Facing Powder

,

Stellite 190 Hard Facing Powder

,

Stellite 190 cobalt chloride powder
Leave a Message
Product Description

Stellite 190 Powder Hardfacing Welding Material For Rock Bits



Product Description

WLCo-190 is a highly abrasion-resistant alloy, primarily used for the hardfacing of bearing journals in tricone rotary rock bits used in the Oil and Gas Industry. Tricone bits operate in hot and extremely abrasive downhole conditions. Due to the high proportion of carbides, which provide the abrasion resistance, care must be taken to minimize cooling stresses incurred during hardfacing and to avoid service conditions which involve severe mechanical or thermal shock.



Common Name: Stellite® 190



CHEMICAL COMPOSITION(%)

C Si Mn Mo Cr W Ni Fe Co
3.3 1.0 ≤1.00 ≤1.00 27.00 14.00 ≤1.00 ≤3.00 Rest



Particle size (µm)

180/53, 180/63, 150/45, 150/63, 150/53, 125/38, 250/45, 45/20, 53/20



Packing Details

Each bottle 5kg/bottles, 5 bottles pack in one carton,

then put cartons onto pallet or Box. OEM packing & label or customized packing methods available.

Stellite 190 Welding Hard Facing Powder For Rock Bits 0





APPLICATIONS

Rock bits

Rock bits for oil drilling

Tri-Cone Rock Bits for Oil Drilling



Type we could offer

Trademark Nominal Chemical Composition HRC Application
C Cr Si W Ni Fe Mn Mo Co B
WL Co1 2.45 30.0 1.0 13.0 ≤3.0 ≤3.0 ≤1.0 ≤1.0 Bal.   50-58 Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves
WL Co3 2.4 30.5 1.0 13.0 ≤3.0 ≤3.0 ≤1.0 ≤1.0 Bal.   50-56 Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc.
WL Co4 1.0 31.0 1.0 14.0 ≤3.0 ≤1.0 ≤0.5 ≤0.5 Bal.   45-50 Hot extrusion die, dry battery industry
WL Co6 1.2 29.0 1.0 4.5 ≤3.0 ≤3.0 ≤1.0 ≤1.0 Bal.   40-46 Engine valve, high temperature valve, turbine blade
WL Co12 1.4 30.0 1.3 8.5 ≤3.0 ≤3.0 ≤1.0 ≤1.0 Bal.   44-50 Pressure valves, sawteeth screw fights
WL Co20 2.5 32.0 1.0 17.0 ≤3.0 ≤3.0 ≤0.5 ≤1.0 Bal.   54-59 Wear plate, bearing sleeve, etc.
WL Co21 0.2 27.0 1.0 0.2 ≤3.0 ≤2 ≤1.0 ≤5.5 Bal.   20-40 Fluid valve seat, turbine blades, hot forging die
WL Co25 0.05 20.0 1.0 15.0 10.0 ≤2.0 ≤1.5 ≤1.0 Bal.   24 High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc.
WL Co31 0.5 26.0 1.0 7.5 10.0 ≤3.0 ≤1.0 ≤1.0 Bal.   30-35 Extrusion die, steam turbine blade, etc.
WL Co32 1.8 26.0 1.2 12.0 22.0 ≤1.5 ≤0.5 ≤1.0 Bal.   40-45 Engine inlet and exhaust valve
WL Co190 3.2 26.0 1.0 14.0 ≤1.0 ≤3.0 ≤1.0 ≤1.0 Bal.   54-60 Petroleum drill bit, mining industry
WL CoT400 0.08 8.5 2.6   1.5 ≤1.5 ≤1.0 28 Bal. 0.8 50-60 Valve and roller path, plastic extruder in strongly corrosive
WL CoT800 0.08 18.0 3.4   ≤1.5 1.5 ≤1.0 28 Bal. 0.8 52-58 Valve and roller path, plastic extruder in strongly corrosive
