Welding Thermal Spraying Powder Stellite 21 Hardfacing
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-Co21 |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 5 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Color | Dark Gray |
|---|---|---|---|
| Chemical Composition | Co Cr W Fe C Ni Si | Sample | Available |
| Process | PTA, HVOF, Laser Cladding, Plasma Spray, Spray-Fuse | Application | Hardfacing & Wear-resistant Welding |
| Certificate | ISO9001 | Hardness | 20-35 HRC |
| Test Report | Mill-Certificate | Free Documents | CO, Form A E F P, FTA |
| Label | Brand, Neutral Or Customized | Currency | USD/EUR/GBP/RMB |
| Highlight | Welding Thermal Spraying Powder,Thermal Spraying Powder Stellite 21,Hardfacing powder flame spray |
||
Product Description

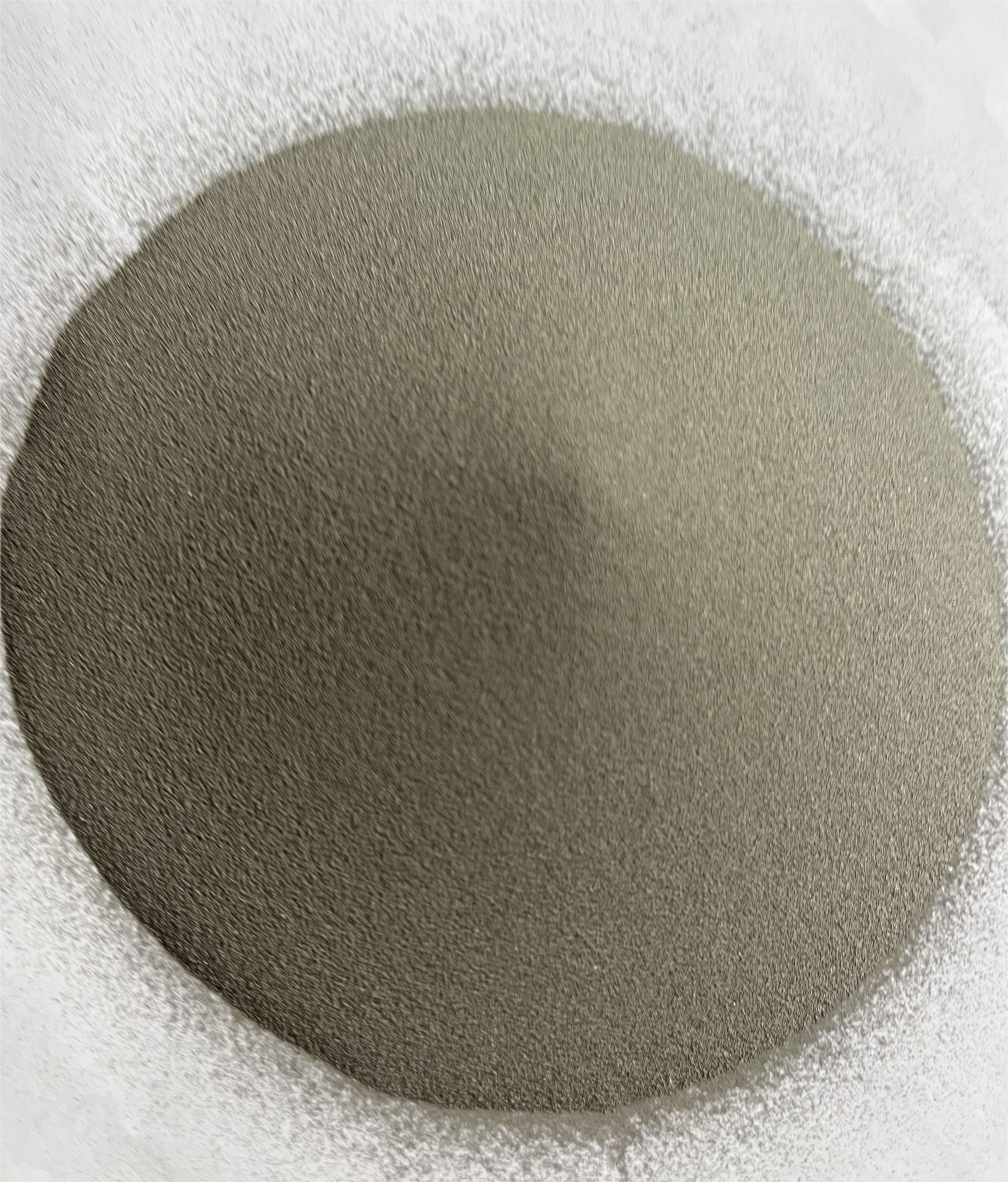

Stellite 21 Cobalt Base Hardfacing, Welding & Thermal Spraying Powder
Product Description
WL Co21 is recommended for applications involving cavitation, erosion, corrosion and/or high temperatures, such as valve trim for petrochemical and power generation. Due to its good impact resistance, it has been widely used in the building up of forging or hot stamping dies.
Common Names: Stellite 21 Polystel 21
Standard: AWS 5.21-2001 ERCoCr-E
CHEMICAL COMPOSITION(%)
| C | Si | Mn | Mo | Cr | W | Ni | Fe | Co |
| 0.25 | 1.50 | ≤0.50 | 5.50 | 27.30 | ≤0.50 | 2.00 | 1.50 | Rest |
CHARACTERISITIC
| Abrasion Resistance | Moderate |
| Impact Resistance | Excellent |
| Corrosion Resistance | Good |
| Hardness | HRC 20-35 |
| Deposit Layers | Multiple |
| Deposit Cross Checks | No |
| Magnetic | No |
| Hot Wear Hardness | Good |
| Machineability | Carbide Tools |
Packing Details
Each bottle 5kg/bottles, 5 bottles pack in one carton,
then put cartons onto pallet or Box. OEM packing & label or customized packing methods available.
APPLICATIONS
Used to make various liquid valves, valve seats
Water turbine blade, hot forging die
Type we could offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
