Colmonoy 5 Welding Hard Facing Rod Nickel Based Alloy High Temperature Valve Valve Sealing
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Colmonoy 5 |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | Each tube 5kg, 4 tubes pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Bare Rod | Color | Metal Color |
|---|---|---|---|
| Test Report | Mill-certificate | Certificate | ISO 9001 |
| Diameter | 2.5-8.0mm | Hardness | 45-54HRC |
| Keyword | Nickel Based Alloy | Material | Ni Cr B Si C Fe |
| Welding Current | International Standard | Type | Hardfacing Welding Rods |
| Equivalent | Deloro 50, Weartech WT-50, Colmonoy 5 | Application | Pump Shaft Valves Sealing Surface Plunger |
| Length | 350mm 500mm 1000mm 2000mm 3000mm 4000mm | Process | PTA / Laser Cladding / HVOF / Plasma Spray/ 3D Printing |
| High Light | Welding Hard Facing Rod,Colmonoy 5 Hard Facing Rod,350mm hard facing electrode number |
||
Product Description

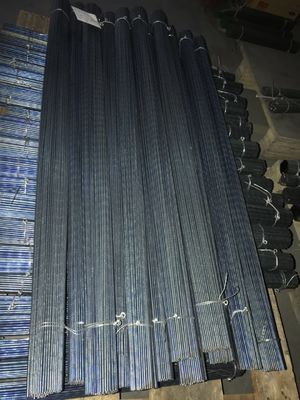

Colmonoy 5 Welding Rod - Nickel Based Alloy Hard Facing Rod High Temperature Valve Valve Sealing
Product Description
WL-NiCrBSi 50 is a hardfacing alloy for application by welding and the spray-fuse and powder-weld processes. It is machinable, and produces very hard dense corrosion resistant coatings with superior fusing characteristics. Should be considered where mild impact is possible, as it has lower crack sensitivity than WL-NiCrBSi60. This is necessarily achieved by loss of some abrasion resistance. Hot hardness maintained to approximately 400°C. Used on extruder screw flights, wear rings, bearings, camshafts and diesel engine valve facings. Used to spray and fuse glass-forming plungers when high hardness is required.
Relative Brand: Deloro® 50
Chemical Composition(%)
|
C |
Si |
B |
Mo |
Cr |
W |
Ni |
Fe |
|
0.45 |
3.7 |
2.3 |
/ |
11.5 |
/ |
Rest |
＜5.0 |
Specification
Packing Details
For length 350mm 500mm pack in carton each 5kg
For 1000mm packing in 5kg tube, 4 tubes in one 20kg carton
For length more than 1000mm, pack in wooden box directly
Applications
Pump shaft
Valves sealing surface
Plunger
Type We Could Offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
