Stellite 1 Polystel 1 Hard Facing Powder ERCoCr-C Cobalt Based Welding For Rotating Sealing Ring
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | WL-Co1 |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 5 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Color | Dark Gray |
|---|---|---|---|
| Chemical Composition | Co Cr W Fe C Ni Si | Sample | Available |
| Process | PTA, HVOF, Laser Cladding, Plasma Spray, Spray-Fuse | Application | Hardfacing & Wear-resistant Welding |
| Certificate | ISO9001 | Hardness | 48-58 HRC |
| Test Report | Mill-Certificate | Free Documents | CO, Form A E F P, FTA |
| Label | Brand, Neutral Or Customized | Currency | USD/EUR/GBP/RMB |
| Highlight | ERCoCr-C Hard Facing Powder,Stellite 1 Hard Facing Powder,stellite powder |
||
Product Description

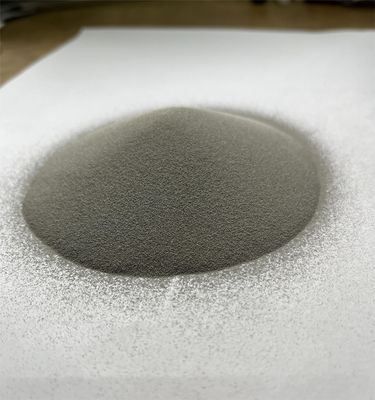

Stellite 1 Powder Polystel 1 ERCoCr-C Hard Facing Powder Cobalt Based Welding For Rotating Sealing Ring
Product Description
WLCo-1 is a cobalt based welding powder that has the highest hardness and wear resistance of the standard cobalt alloys. WLCo-1 is used in elevated temperature, high wear applications. Exceptional resistance to metal-to-metal wear in corrosive media at high temperatures.
Common Names: Stellite 1 Polystel 1
Standard: AWS 5.21-2001 Mil-R-17131C ERCoCr-C Mil-CoCr-C
CHEMICAL COMPOSITION(%)
| C | Si | Mn | Mo | Cr | W | Ni | Fe | Co |
| 2.5 | 1.00 | ≤1.00 | ≤1.00 | 29.00 | 12.5 | ≤3.00. | ≤3.00 | Rest |
CHARACTERISITIC
| Abrasion Resistance | Excellent |
| Impact Resistance | Moderate |
| Corrosion Resistance | Good |
| Hardness | HRC 50-60 |
| Deposit Layers | 2 Max |
| Deposit Cross Checks | * Possible |
| Magnetic | No |
| Hot Wear Hardness | Excellent |
| Machineability | Diffcult |
Packing Details
Each bottle 5kg/bottles, 5 bottles pack in one carton,
then put cartons onto pallet or Box. OEM packing & label or customized packing methods available.
APPLICATIONS
Used to make rotating sealing ring, gouge type bearing sleeve, drill head, etc
Hydro pulper disc
Oil drilling tools
Mixer seals and rotors
Type we could offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
